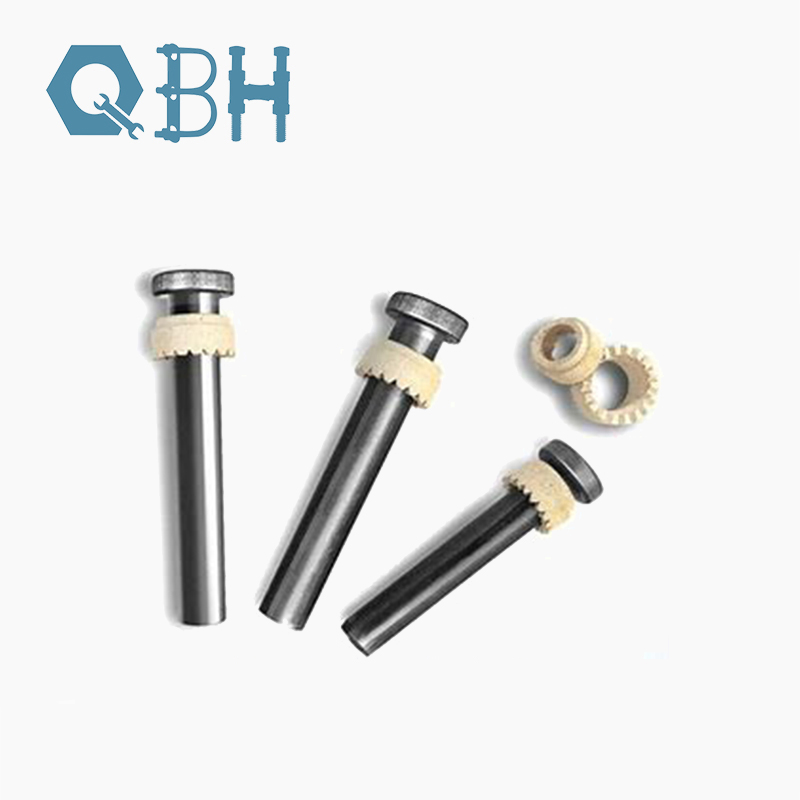

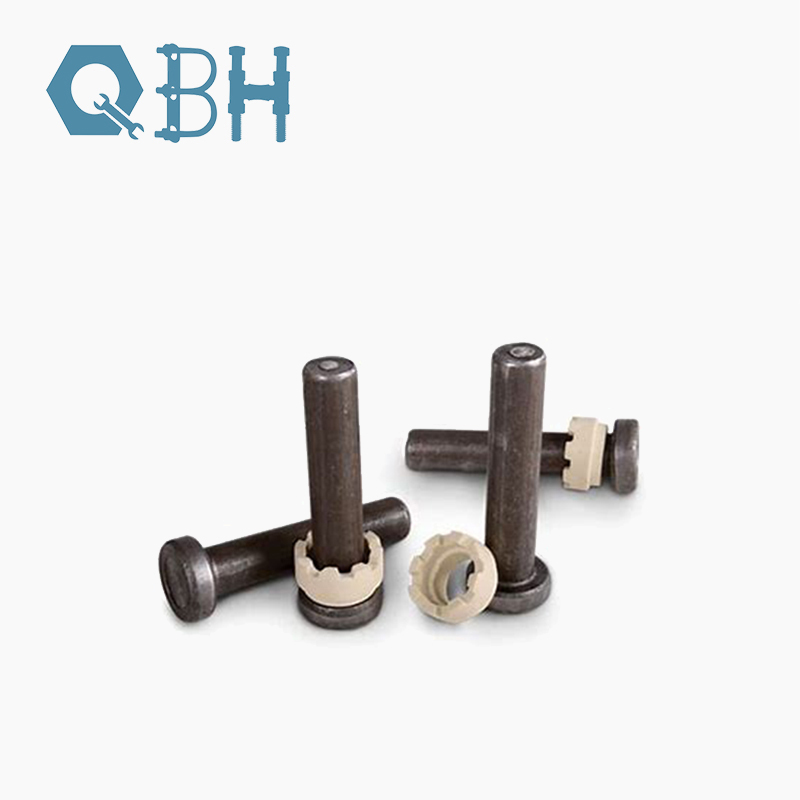

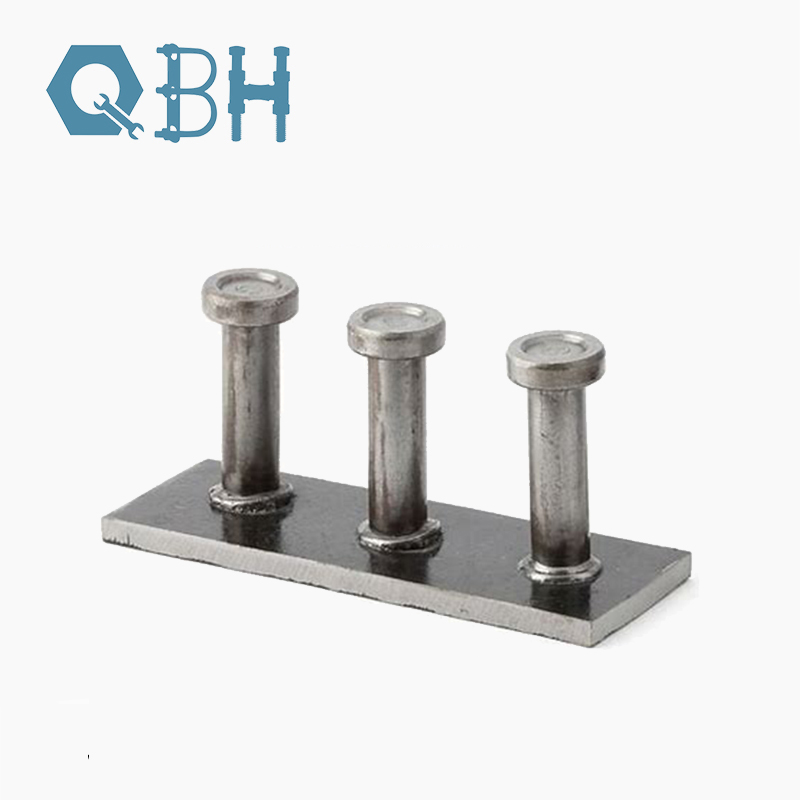

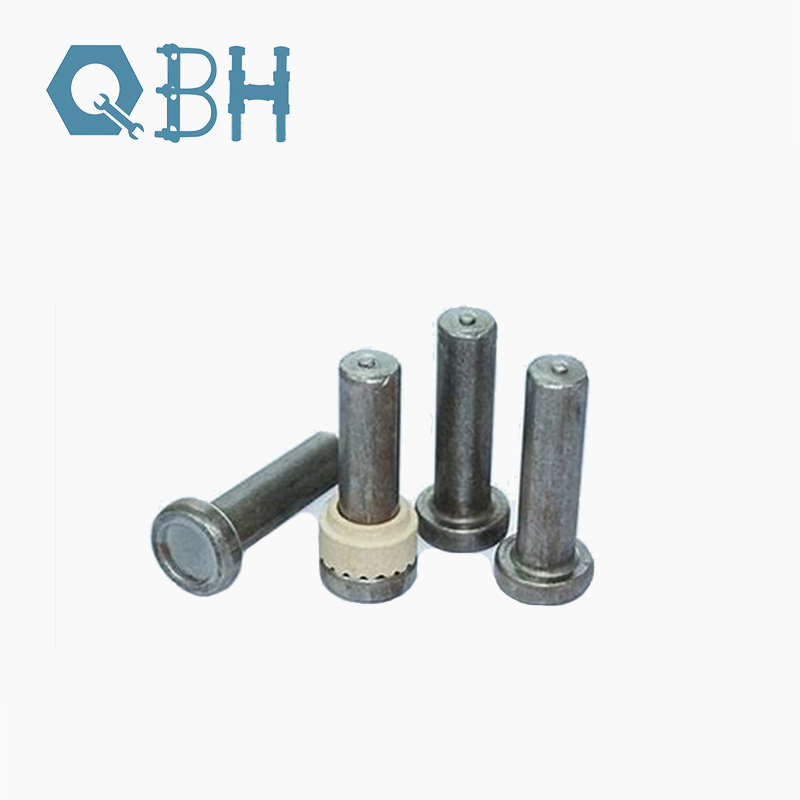

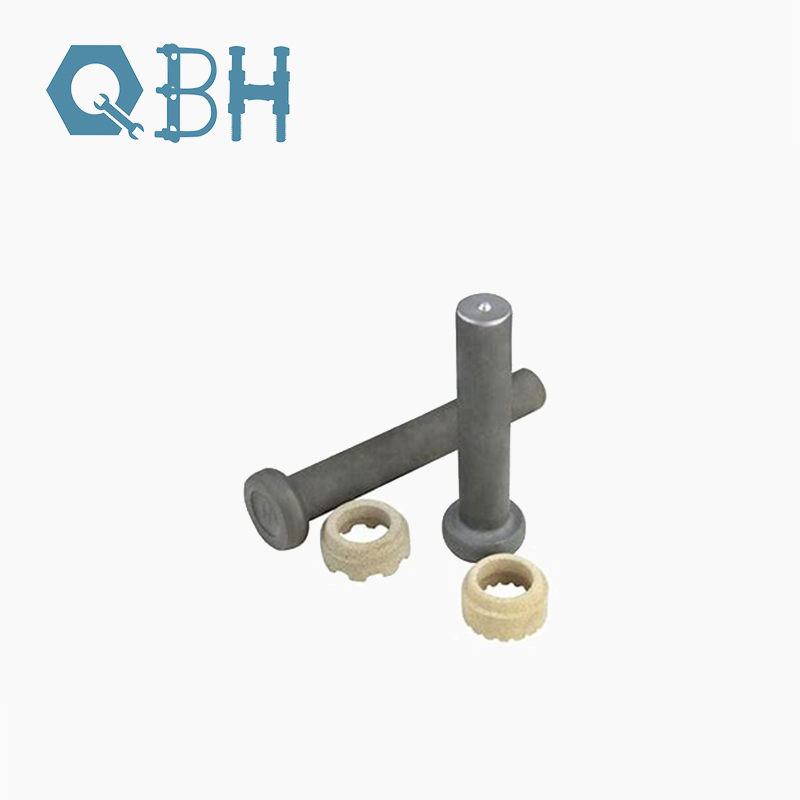

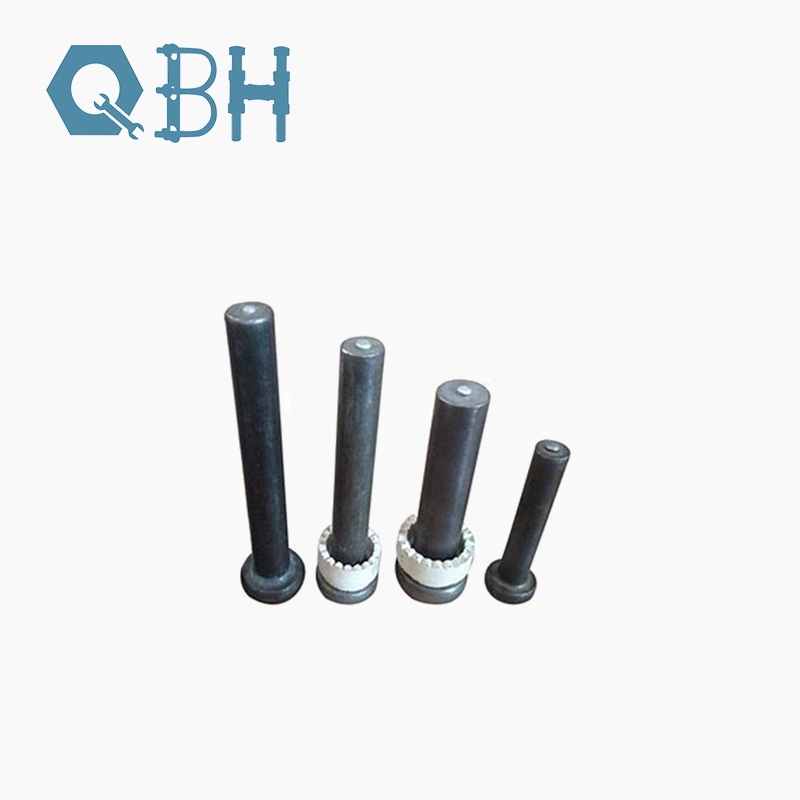

Shear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw
  • Shear Connector Welding ScrewShear Connector Welding Screw

Shear Connector Welding Screw

Shear Connector Welding Screw refer to the installation of steel pins or grommets, that extend out of the top flange of a steel support beam. Normally the Shear Connector Welding Screw are welded, with a spot welder, after the metal deck is installed over the supporting structural steel. The spot welder will burn through the metal deck and attach the Shear Connector Welding Screw directly to the top of the steel beam.

Model:GB10433

Send Inquiry

Product Description

Shear Connector Welding Screw function is the installation of steel pins or grommets, that extend out of the top flange of a steel support beam. Normally the Shear Connector Welding Screw are welded, with a spot welder, after the metal deck is installed over the supporting structural steel. The spot welder will burn through the metal deck and attach the Shear Connector Welding Screw directly to the top of the steel beam. is to provide a structural connection between the poured in place for the Shear Connector Welding Screw integrity is simply striking the side of the shear stud with an iron mallet. This will ensure that the Shear Connector Welding Screw has been properly welded to the beam, if not, the Shear Connector Welding Screw will simply break off at the point of intersection with the steel beam. The Shear Connector Welding Screw will have failed due to a shear force.


Product Introduction

Place of Origin CHINA
Standard Shear Connector Welding Screw
HS CODE 7318159001
Brand Name QBH
Certification ISO13918
Material 35K, 40Cr, 35CrMo, SCM435, etc.
Size M3-M64
Production Process Cold forging≤300mm, Hot forging≤1000mm
Class 4.8/ 6.8/ 8.8/ 10.9/ 12.9
Delivery Time Within 30 Days


Hot Tags: Shear Connector Welding Screw, China, Manufacturer, Supplier, Factory
